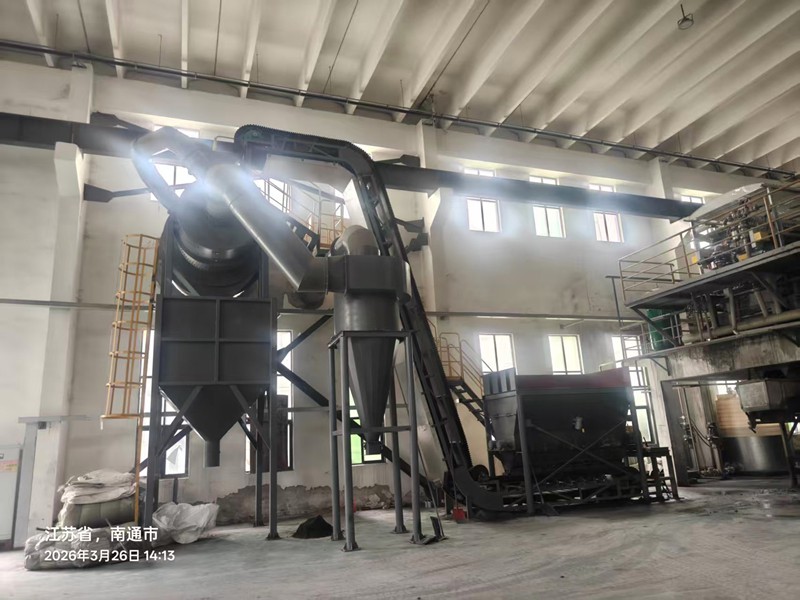

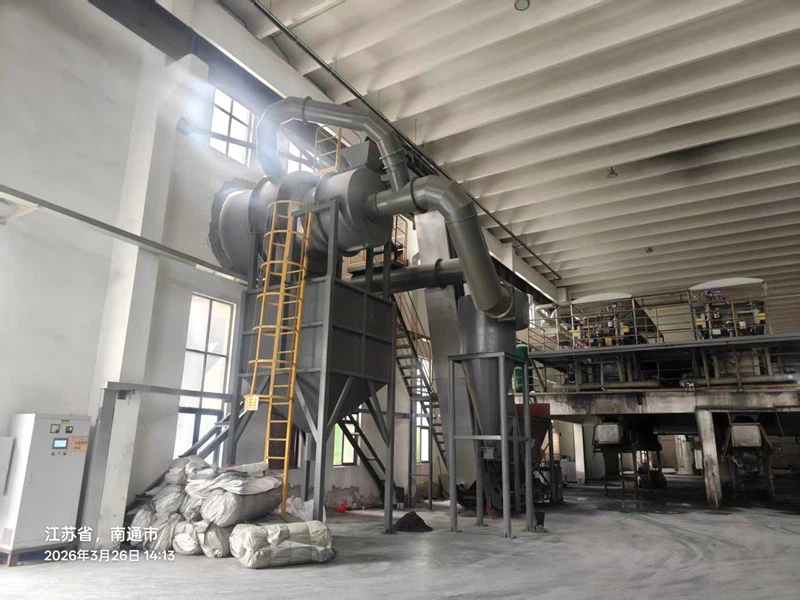

Aluminum Powder Drying System
Special Safety Warning for This Material
Aluminum powder is flammable and explosive.The key needs for drying are low temperature, inert gas protection, full closed design, explosion-proof, anti-static, and negative pressure dust collection. Our aluminum powder drying system is an explosion-proof type single-cylinder drum dryer. We designed it just for aluminum powder. Safety comes first. Jiangsu Haike Environmental Tech Co., LTD takes this very seriously. We have 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.
Explosion-Proof Features We Provide
Our aluminum powder drying system is fully closed. We add inert gas protection (nitrogen or argon, oxygen ≤8%). The drying temperature is controlled at 80 to 150°C. The machine uses anti-static design. The drum and lifting plates are stainless steel. systems. We also have special lifting and breaking devices to prevent sticking and agglomeration. Multi-stage dust collection includes cyclone plus anti-static bag filter.
Technical Data for Aluminum Powder Drying System
Inlet water content is ≤10%. Outlet water content is ≤0.5%. Drum speed is 2-4 r/min. Full data is available from our engineer. Customization is available.
|
Model |
Capacity (t/h) |
Main Motor Power (kW) |
Drying Temp (°C) |
Drum Material |
|
Φ1.2×8.0m |
1.5-2.5 |
7.5 |
80-150 |
SUS304 |
|
Φ1.5×10m |
2.5-4.0 |
15 |
80-150 |
SUS304 |
|
Φ1.8×12m |
4.0-6.0 |
22 |
80-150 |
SUS304 |
|
Φ2.2×14m |
6.0-9.0 |
30 |
80-150 |
SUS304 |
Case from Anhui Aluminum Powder Plant
An aluminum powder plant in Anhui used a dryer without explosion-proof design. They almost had an accident. Then they found us. We designed a full explosion-proof aluminum powder drying system for them. It has nitrogen protection and anti-static design. Now they use it with confidence. Workers no longer worry.
Safety First and FAQ
Q: Can I save money by skipping some safety features?
We strongly advise against it. Safety problems can cause huge losses. We always put safety first.
Q: Do you do a safety assessment?
Yes. Our engineer will do a full safety assessment for you.
Q: What is the oxygen level control?
We keep oxygen at ≤8% using inert gas. This prevents explosion.
