Air-Box Pulse Bag Filter

Name: China Customized Air-Box Pulse Bag Filter Manufacturers Suppliers - Factory Direct Wholesale - Haike
Brand: Haike
SKU: 300822019

Our company, Jiangsu Haike Environmental Tech Co., LTD, developed this air-box pulse bag filter based on advanced foreign technology. It combines the good points of chamber reverse air cleaning and pulse jet cleaning. It solves two old problems: weak cleaning strength and dust re-attachment to bags.

Send Inquiry

Product Introduction

How We Developed This Air-Box Pulse Bag Filter

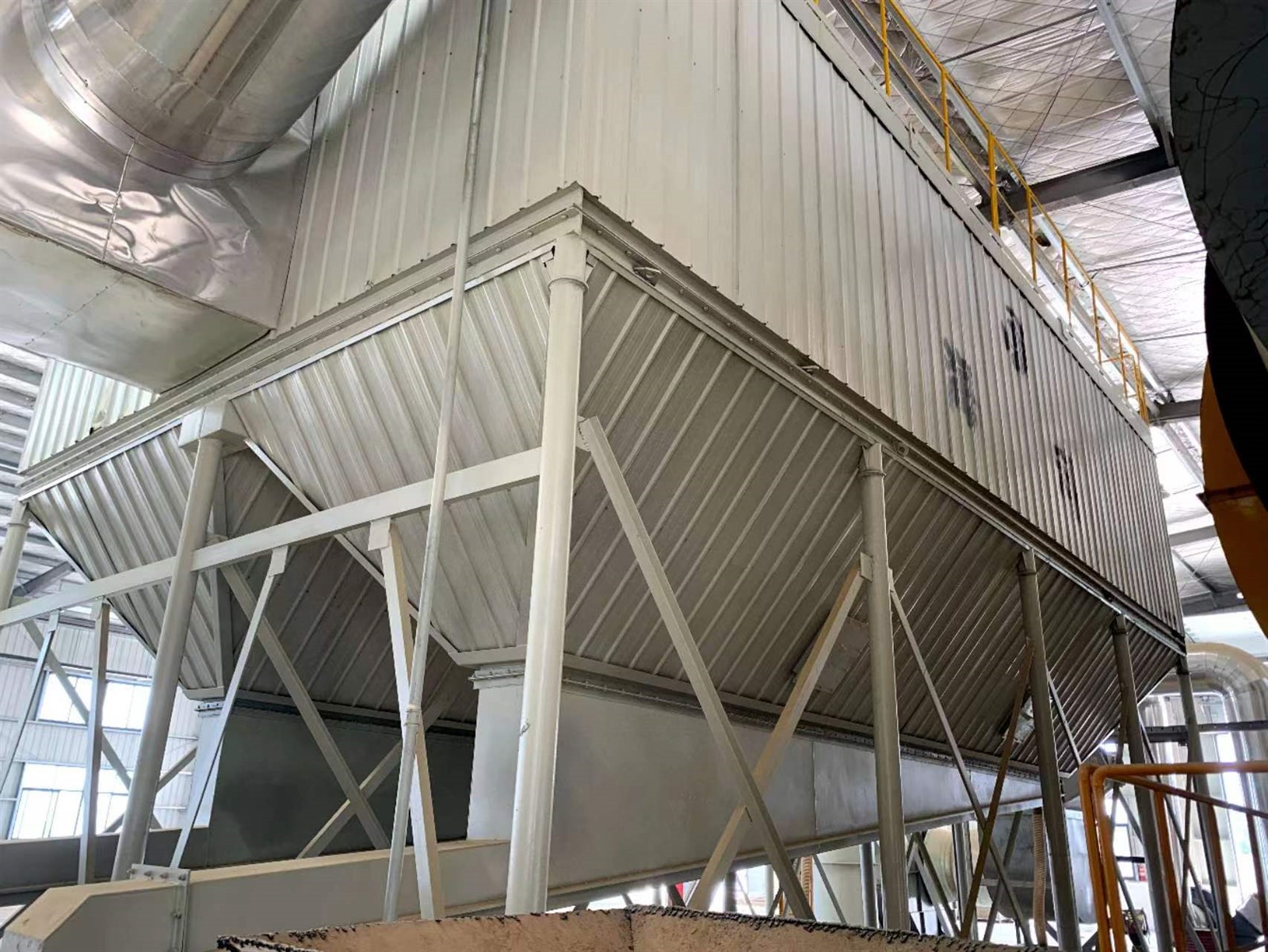

Our company, Jiangsu Haike Environmental Tech Co., LTD, developed this air-box pulse bag filter based on advanced foreign technology. It combines the good points of chamber reverse air cleaning and pulse jet cleaning. It solves two old problems: weak cleaning strength and dust re-attachment to bags. This air-box pulse bag filter uses high-energy offline cleaning. The cleaning energy is large. The effect is good. The system resistance is low. The filter bag life is long. The dust removal efficiency is high. We are a high-tech enterprise with many patents. We have 28 workers and a modern factory.

Handles High Dust Concentration Easily

This air-box pulse bag filter can handle very dirty gas. The highest concentration can reach 1300 grams per cubic meter. It can work as a process machine to collect finished product from vertical mills or separators. Besides cement, it is also widely used in grain, light industry, mining, power, chemical, and metallurgy. We offer free technical support before you buy. Our engineers will select the right model for your actual needs. We also provide the general drawing and layout drawing.

Technical Data for Air-Box Pulse Bag Filter

Filter speed is 1.2-2.0 m/min. Resistance is 1470-1770Pa. Inlet gas dust is <200g/Nm³. Outlet dust is <10mg/Nm³. Bag size is ∮130×2450mm or ∮130×3060mm.

Series	Air Flow (m³/h)	Filter Area (m²)	Chamber Qty	Total Bags
HQM32 Series	6900 – 13390	93 – 186	3 – 6	96 – 192
HQM64 Series	17800 – 35700	284 – 496	4 – 8	256 – 512
HQM96 Series	26800 – 133900	372 – 1868	4 – 20	384 – 1920
HQM128 Series	67400 – 291600	936 – 4050	6 – 26	768 – 3328

Note: Full data (air consumption, pulse valve count, insulation area, etc.) is available on request.

Customer Case from Hebei Cement Plant

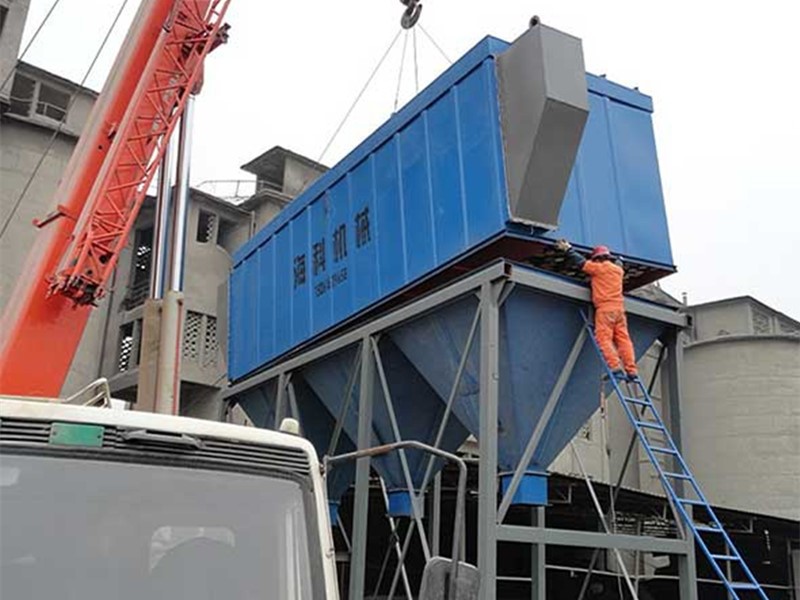

A cement plant in Hebei had an old filter that did not work well. The dust emissions did not meet the rules. The environmental bureau gave them a rectification notice. We installed one HQM96-2×8 air-box pulse bag filter for them. Installation and testing took only two weeks. After startup, the dust emissions dropped below 10 mg per cubic meter. The customer was very satisfied. They ordered a second unit from us.
