Automatic Truck Loading System
Automated Bulk Loading for Trucks
Our automatic truck loading system is an automated bulk loading system for trucks. It integrates weighing, automatic positioning, continuous loading, dust suppression, and smart control. It is for powder and granular materials like fly ash, cement, mineral powder, sand and gravel, grain, and coal. The system can run with no one there. It automatically aligns, loads by weight, prevents spillage, and prevents overloading. It greatly improves loading efficiency, reduces labor, and meets environmental dust-free loading requirements. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.
No More Overloading or Dust

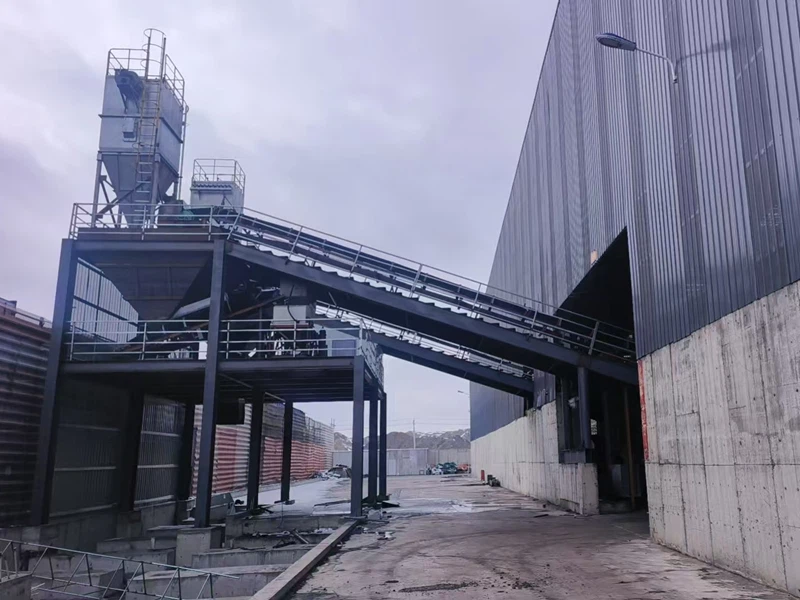

A cement plant in Shandong had a problem with bulk cement loading. They controlled the discharge manually. Often the truck was overloaded or not full. Dust was heavy. We installed a HKSZ200 automatic truck loading system. The driver scans a code. The system automatically aligns and loads by weight. The error is less than 0.3%. There is almost no dust. The customer said this solved a long-standing problem. The system has a telescopic chute that goes into the truck. Dust is sucked away at the same time. The site is clean.
Technical Data for Automatic Truck Loading System
Telescopic chute material: wear-resistant or dust-sealed. Auto centering optional.
|
Model |
Loading Capacity (t/h) |
Accuracy |
Telescopic Chute |
Motor Power (kW) |
Air Requirement |
|
HKSZ50 |
50-100 |
±0.5% |
Dia 300-500mm, stroke 1.5-3m |
2.2-3 |
0.6-0.8MPa, 0.3-0.5m³/min |
|
HKSZ100 |
100-200 |
±0.5% |
Dia 500-600mm, stroke 1.5-3m |
3-5.5 |
0.6-0.8MPa, 0.5-0.8m³/min |
|
HKSZ200 |
200-300 |
±0.3%-±0.5% |
Dia 600-800mm, stroke 2-4m |
7.5-11 |
0.6-0.8MPa, 0.8-1.2m³/min |
|
HKSZ300 |
300-500 |
±0.3% |
Dia 800-1000mm, stroke 2-6m |
11-15 |
0.6-0.8MPa, 1.2-1.5m³/min |
FAQ and Environmental Upgrade
Q: How does it prevent dust?
The telescopic chute goes into the truck. A strong dust collection port connects to the chute. It pulls the dust away as soon as it appears. This keeps the loading area very clean.
Q: How accurate is the weighing?
The system is very accurate. For the largest model, the error is only ±0.3%. This helps you avoid overloading fines and gives customers the right amount every time.
Q: Can this system work with my existing scale?
Yes, it can. We can integrate our automatic loading system with your current scale. Just tell us your setup. Our engineer will make a plan that fits your site.
