Pulverized Coal Injection Machine
Grind and Blow Coal in One Step

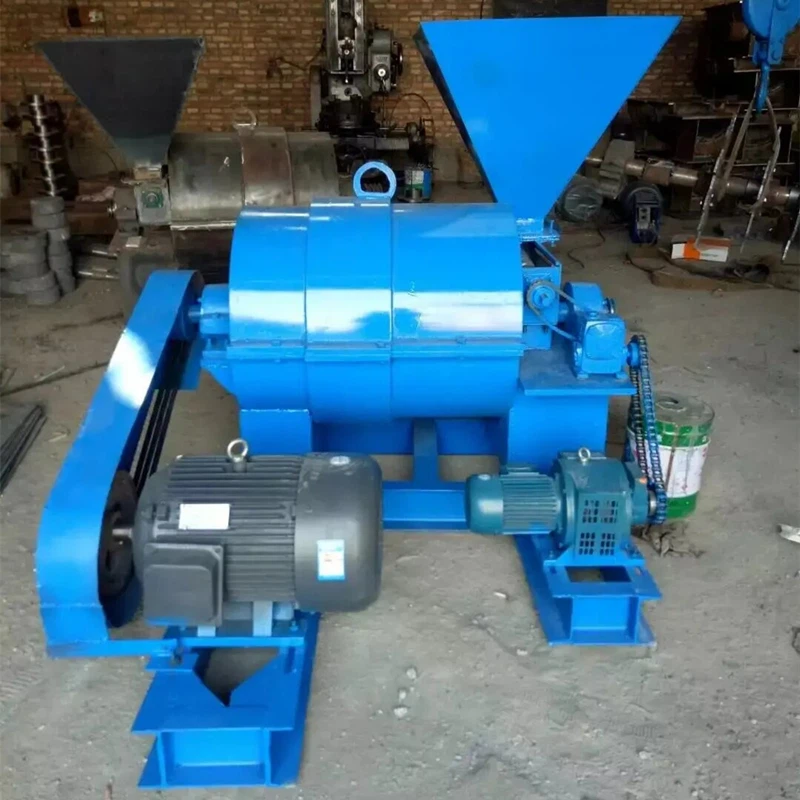

Our Pulverized Coal Injection Machine (also called MP/WMJ series) is an energy-saving coal combustion device. It grinds, dries, and blows coal powder into the furnace all in one step. It turns lump coal directly into fine powder and burns it while floating in the air. This gives fast ignition, full combustion, no black smoke, 40-50% coal savings, and precise temperature control. It replaces oil, gas, and electric heating in many places. You can use it for industrial boilers, hot air furnaces, rotary kilns, drying lines, and metallurgy heating. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.
Save Coal and Pass Environmental Tests
A mineral powder drying plant in Henan used a lump coal stove before. The heat efficiency was low. Black smoke was heavy. They got fined often by environmental authorities. We replaced their old stove with an HMP900 Pulverized Coal Injection Machine. The coal powder burns completely. There is no visible black smoke. Coal saving is 45%. The environmental test passed on the first try. The owner said they should have switched much earlier. The money saved on coal in one year alone pays for the machine.
Technical Data for Pulverized Coal Injection Machine
Coal heat value must be ≥5000 kcal/kg. Motors are Y130M-4 to Y250M-4.
|
Model |
Coal Injection (kg/h) |
Air Flow (m³/h) |
Feed Size (mm) |
Motor Power (kW) |
Coal Saving (%) |
|
HMP180 |
100-180 |
1500 |
≤8 |
7.5 |
30-55 |
|
HMP250 |
150-250 |
1700 |
≤8 |
11 |
30-60 |
|
HMP350 |
250-350 |
1950 |
≤8 |
15 |
35-60 |
|
HMP500 |
350-500 |
2200 |
≤8 |
18.5 |
40-65 |
|
HMP900 |
500-1000 |
2450 |
≤8 |
30 |
40-70 |
|
HMP1200 |
900-1300 |
2700 |
≤8 |
45 |
50-70 |
|
HMP1500 |
1400-1800 |
3200 |
≤8 |
55 |
50-70 |
FAQ and Dual Benefit
Q: How much coal can I save compared to a lump coal stove?
40-50% less coal use.
Q: Does this machine produce black smoke?
No. The coal powder burns very fully, so there is almost no black smoke.
Q: Can I use cheap, low-grade coal?
Yes, it works with many coal types. But the heat value should be at least 5000 kcal/kg for best results.
