Table Top Conveyor Belt

Name: China Customized Table Top Conveyor Belt Manufacturers Suppliers Factory - Wholesale Service - Haike
Brand: Haike
SKU: 300842460

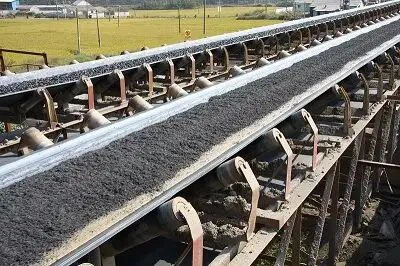

Our table top conveyor belt (belt conveyor) is the most widely used continuous conveyor in industry. It uses a rubber belt as the carrying and pulling part. Friction between the drive roller and the belt moves the material. It can go horizontally or at an incline.

Send Inquiry

Product Introduction

Most Widely Used Conveyor

Our table top conveyor belt (belt conveyor) is the most widely used continuous conveyor in industry. It uses a rubber belt as the carrying and pulling part. Friction between the drive roller and the belt moves the material. It can go horizontally or at an incline. It works for blocks, granules, powder, and even whole items. It has large capacity, stable running, low energy use, easy maintenance, and can be long distance. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.

Best for Long Distance, Large Volume

A table top conveyor belt is best for long distance and large volume material movement. The running cost is low. The automation level is high. It is standard equipment in modern factories. For an aggregate line in Anhui, we designed a B1200 belt conveyor system. The distance was 500 meters from the crusher to the finished product silo. We used multiple sections. The system runs smoothly with low power use. The customer said it saved a lot of money compared to using trucks.

Technical Data for Table Top Conveyor Belt

Motor power is 2.2-55 kW. Material size is ≤120-500 mm. Full data available.

Model	Belt Width (mm)	Capacity (t/h)	Belt Speed (m/s)	Max Angle (°)	Max Length (m)
B500	500	30-60	1.0-1.25	≤18	≤200
B650	650	60-125	1.25-1.6	≤18	≤300
B800	800	125-225	1.6-2.0	≤18	≤400
B1000	1000	200-400	1.6-2.5	≤18	≤500
B1200	1200	350-600	2.0-2.5	≤18	≤600
B1400	1400	500-900	2.0-3.15	≤18	≤800
