Automatic Ton-Bag Packaging System
Fully Automatic Big Bag Filling

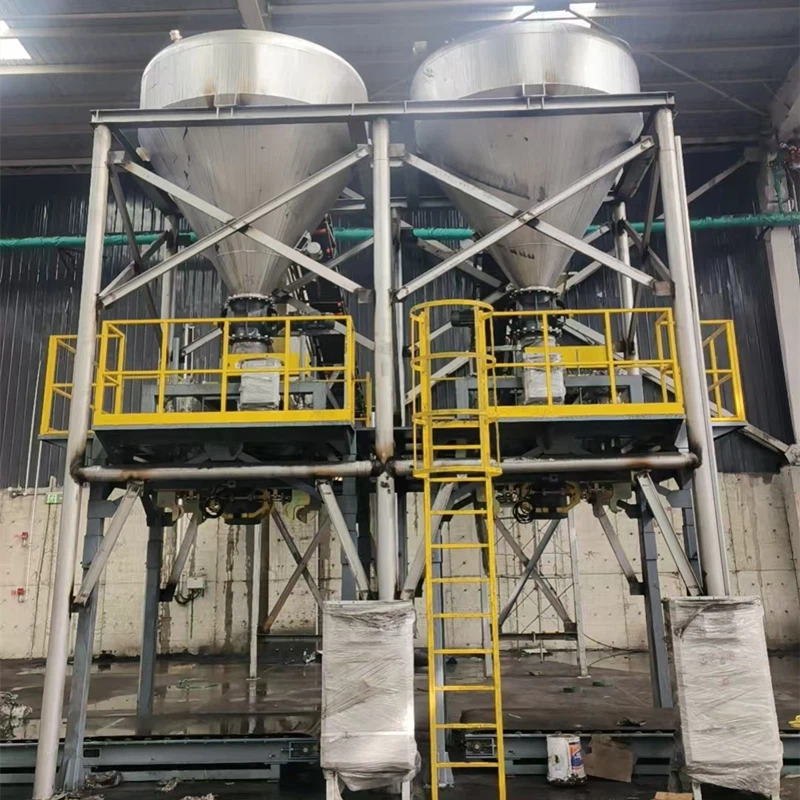

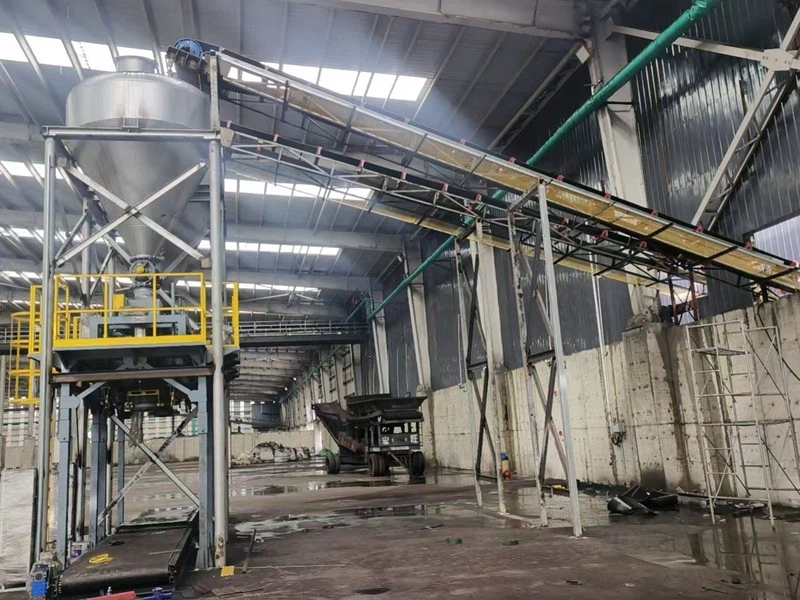

Our automatic ton-bag packaging system is a fully automatic line for filling FIBC bags (ton bags, 500-2000 kg load). It integrates automatic bag picking, clamping, positioning, grading filling, dust collection, sealing, shaping, and discharging. It works for powder and granular materials like cement, fly ash, mineral powder, sand powder, grain, chemicals, and lithium battery materials. The benefits are high precision, fast speed, low dust, few workers, and connection to smart storage. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.
One Worker Replaces Eight
A chemical plant in Jiangsu needed to pack 200 tons of powder every day. They used manual bag placing, weighing, and sealing. They needed eight workers. Efficiency was low, and mistakes happened. We installed a HKLCS-1000A automatic ton-bag packaging system. Now only one person operates the computer. The packing speed is even faster. The labor cost saved in one year pays for the machine. The system does everything automatically: take bag, place bag, clamp, weigh, fill, seal, and convey.
Technical Data for Automatic Ton-Bag Packaging System
Feeding method: gravity or lift or screw or belt plus fine feeding. Material: 304 stainless steel or 304/316L.
|
Model |
Weight Range (kg) |
Speed (bags/h) |
Accuracy |
Power (kW) |
Air Use (m³/min) |
|
HKLCS-500 |
300-500 |
5-10 |
≤±0.5% |
5 |
0.6 |
|
HKLCS-1000A |
500-1000 |
10-40 |
better than ±0.2% |
7.5-11 |
0.5-0.8 |
|
HKLCS-1000B |
500-1000 |
5-10 |
better than ±0.2% |
11-15 |
0.6-1.0 |
|
HKLCS-1500 |
800-1500 |
4-8 |
±0.2%-±0.5% |
15-22 |
0.6-1.0 |
|
HKLCS-2000 |
1000-2000 |
3-6 |
±0.2%-±0.5% |
22-30 |
0.8-1.2 |
FAQ and Unmanned Operation
Q: How many workers are needed?
Only one to monitor the computer. The rest is automatic.
Q: What is the accuracy?
Better than ±0.2% for most models.
Q: Is dust controlled?
Yes. Dust collection is integrated.
