Dual-Rotor Air Classifier

Our Dual-Rotor Air Classifier is an upgrade from O-Sepa technology. It has an upper rotor and a lower rotor on the same shaft. They can spin at different speeds or the same speed. This creates a double vortex classification field. It gives two rounds of dispersion and two rounds of classification. The precision, efficiency, and fineness adjustment range are much better than single-rotor machines. This machine is the top choice for ultra-fine grinding of cement, slag, fly ash, limestone, and non-metallic minerals. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.

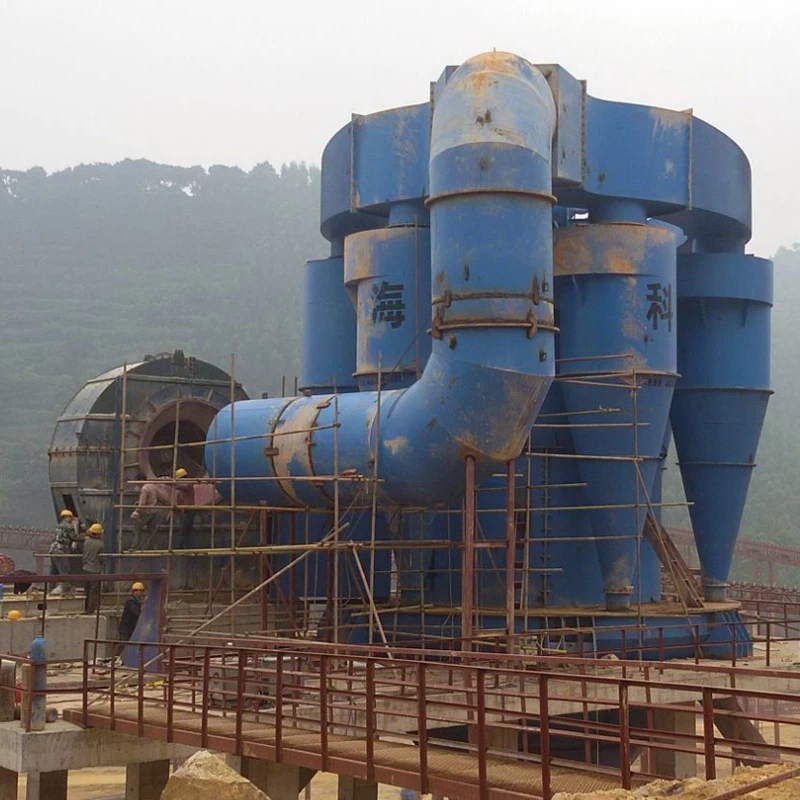

Xiamen Xiang Sheng Nickel Industry Co., Ltd has a 600,000-ton-per-year slag powder line. They used a single-rotor classifier before. The problems were poor precision, unstable fineness, and high energy use. In 2023, they chose our HKX800 Dual-Rotor Air Classifier as a replacement. The dual rotors create two classification fields. The 45μm sieve residue is now stable below 2%. Specific surface area is above 450 m²/kg. Capacity is 150 t/h. Speed is adjustable from 150 to 350 rpm. Air flow is 66,388 m³/h. After startup, system circulation load dropped 18%. Output increased 22%. Power use per ton fell 12%. The customer gave high praise.

Fan models range from SCF-No.8C to SCF-No.20B. Full data is available.
