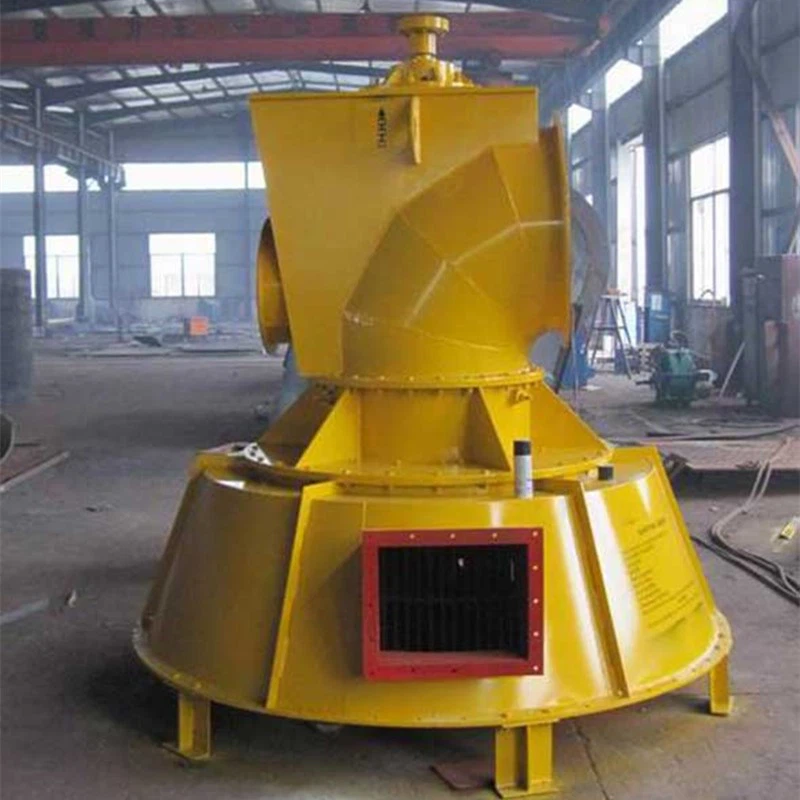

Coal Mill Dynamic Air Classifier

Our Coal Mill Dynamic Air Classifier is a key classifier for coal preparation systems in cement plants. It uses vortex, inertia, and centrifugal principles. It works with air-swept coal mills. Air and material flow through the same path. This keeps the system simple. Coarse powder goes back to the mill for another grind. Fine powder goes to the dust collector as finished product. You can control coal fineness by changing the rotor speed. The classification efficiency is over 10% higher than normal classifiers. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.

Coal powder is flammable and explosive. Our Coal Mill Dynamic Air Classifier has an explosion-proof design. The housing has explosion vents. All electrical parts are explosion-proof. The machine is fully grounded. This makes it very safe to use. Here is how it works: the air and coal mix from the mill comes in through the lower inlet pipe. It goes up through the inner cone. Coarse particles fall down by gravity into the coarse collector. The fine powder goes to the rotor zone. Fine particles that are small enough go through the rotor and out. Coarse particles are thrown back to the mill.

Capacity is based on 80μ sieve residue of 2%. The machine comes with an SGZ-8 dry oil pump. Motors are Y160L-4 to Y225M-4.

A cement plant in Henan had a coal mill with low classifier efficiency. The coal fineness was not stable. The kiln head did not burn well. We replaced their old unit with an MD850A Coal Mill Dynamic Air Classifier. Now coal fineness stays below 2% residue. The kiln burns fully. Clinker quality improved.
