V-Type Air Classifier
V-Type Air Classifier suppliers

V-Type Air Classifier

Name: China Customized V-Type Air Classifier Manufacturers Suppliers Factory - Wholesale Service - Haike
Brand: Haike
SKU: 300839166

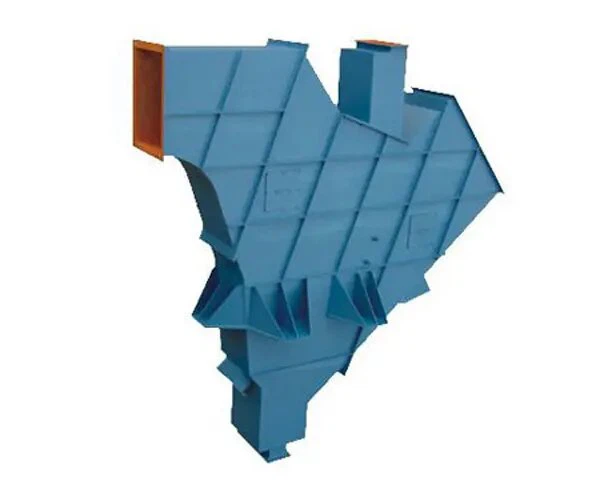

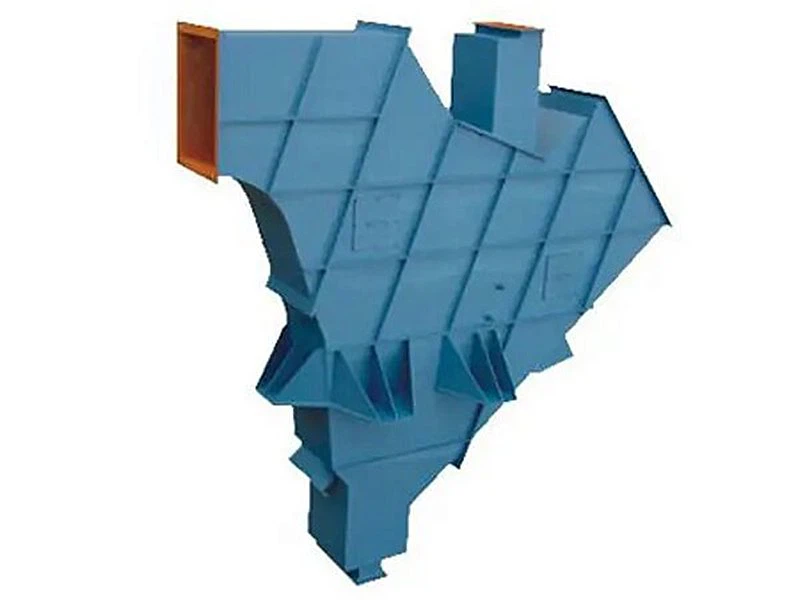

Our V-type air classifier (also called V-type static classifier) is made for roller press grinding systems. It is used for coarse material dispersion and classification. It is widely used in cement, mineral powder, sand and gravel, and non-metallic mineral lines. The body is V-shaped.

Send Inquiry

Product Introduction

Simple Design with No Moving Parts

Our V-type air classifier (also called V-type static classifier) is made for roller press grinding systems. It is used for coarse material dispersion and classification. It is widely used in cement, mineral powder, sand and gravel, and non-metallic mineral lines. The body is V-shaped. There are no moving parts inside. It uses gravity, inertia, and air flow to disperse and classify the pressed material from the roller press. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.

No Power Needed, Long Life

The core benefits of our V-type air classifier are simple structure, no power use, long wear life, high classification efficiency, and stable running. It also has some drying function for the material. It is a key pre-classification machine in modern high-efficiency grinding systems. You install it once and don't worry about it for ten years. There are no motors or bearings inside. It works entirely by air flow. So basically no maintenance is needed.

Technical Data for V-Type Air Classifier

Model	Capacity (t/h)	Air Flow (m³/h)
V500	90-110	30000-36000
V750	140-160	45000-52000
V1000	180-210	60000-72000
V1500	270-300	90000-100000
V2000	360-420	120000-144000
V2500	450-540	150000-180000

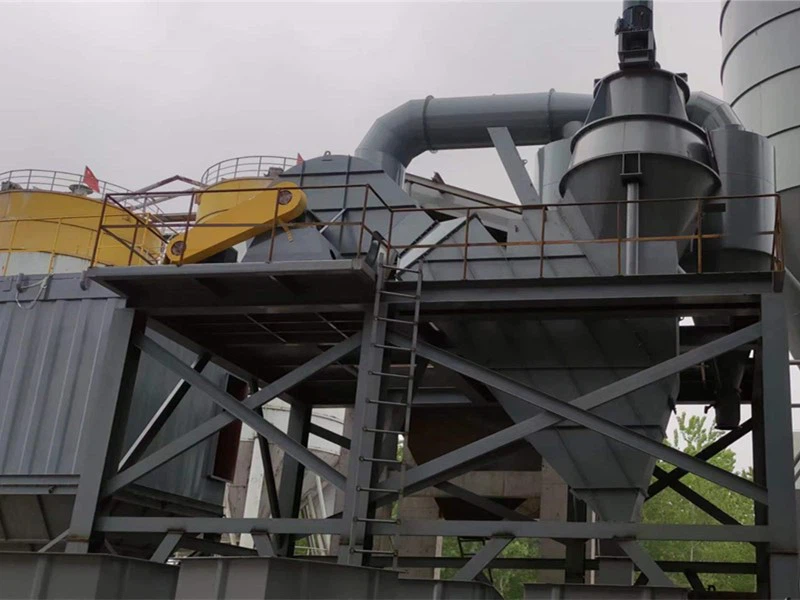

Case from Jiangsu Cement Plant

A cement plant in Jiangsu added a roller press system but did not have a V-type air classifier. The pressed material went straight into the mill. The mill output was low. We added a V1500 classifier for them. Now coarse material goes back to the roller press. Fine material goes to the mill. The mill output increased by 30%. Power use dropped by 20%.
