Dry Mortar Sand Making Line

Dry Mortar Sand Making Line

Our dry mortar sand making line is a complete set of equipment for making manufactured sand. It is made specifically for dry mortar production. It can process raw materials like pebbles, granite, limestone, and industrial tailings into manufactured sand. The sand has the right particle size and gradation for mortar. It replaces natural river sand.
Send Inquiry
Product Introduction

A Complete System for Making Manufactured Sand



Our dry mortar sand making line is a complete set of equipment for making manufactured sand. It is made specifically for dry mortar production. It can process raw materials like pebbles, granite, limestone, and industrial tailings into manufactured sand. The sand has the right particle size and gradation for mortar. It replaces natural river sand. This dry mortar sand making line combines crushing, sand making, screening, and dust collection. It uses modular design. The automation level is high. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents.

0c204531-cd66-43cf-9d5f-38aa654ecf88

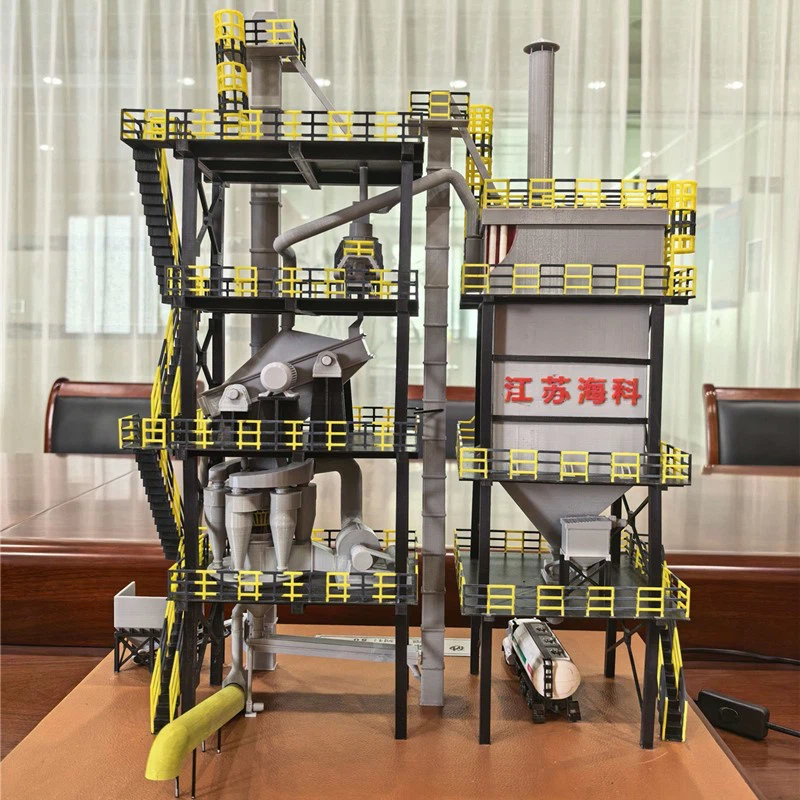

Tower Layout for Clean Production



We use a tower process layout. Raw material flows down by gravity from the bin. It goes through computer batching, screw conveying, mixing, and packaging. The central computer controls everything. The batching precision is high. The site is clean with no dust. The modular structure allows you to expand capacity later. We can customize for large volumes or special needs.



Technical Data for Dry Mortar Sand Making Line



Max feed size is ≤13mm. Customization is available.

Model

Capacity (t/h)

Total Power (kW)

Dimensions (m)

HKV7-60

60

430

26×10×26

HKV7-100

100

780

29×10×28

HKV7-150

150

870

30×10×28



Case from Fujian Sand Plant



A sand plant in Fujian used to sell natural river sand. But river sand resources became less and less. They decided to switch to manufactured sand. We designed a HKV7-100 dry mortar sand making line for them. From feeding to output, everything runs automatically. The manufactured sand has good gradation. All tests passed. Now their manufactured sand is in short supply.



FAQ and Value Proposition



Q: Can I use this line for other materials?

Yes. It works for pebbles, granite, limestone, and industrial tailings.

Q: How automated is it?

The central computer controls batching, conveying, mixing, and packaging. Very high automation.

Q: Does it meet environmental protection standards?

Yes. It includes dust collection for clean operation.



Hot Tags: dry mortar sand making line, China dry mortar sand making line manufacturers, suppliers, factory
