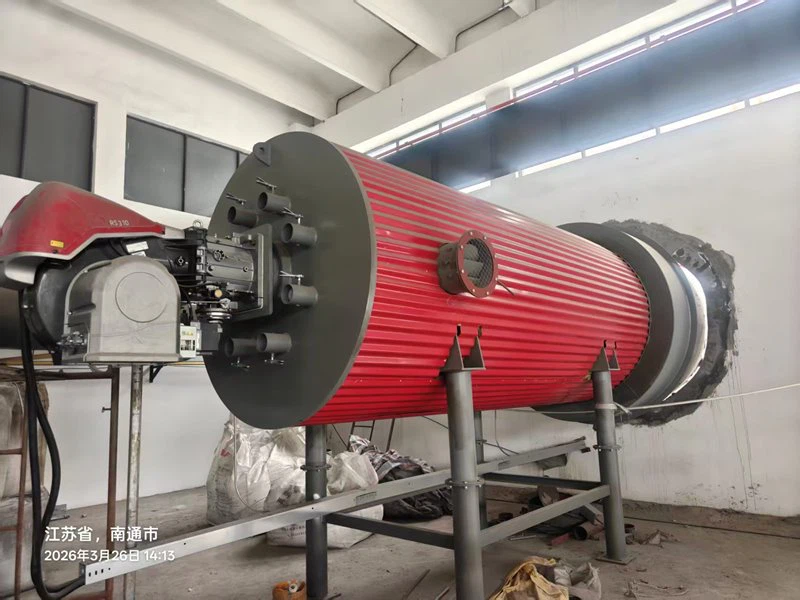

Natural Gas Hot Air Furnace
Clean Heat for Your Drying Line
Our natural gas hot air furnace uses natural gas as a clean fuel. It burns the gas fully to produce clean hot air. This hot air then heats your drying drum. The natural gas hot air furnace lights up fast. It controls temperature very well. There is no black smoke. Operation is simple. It meets all environmental standards. Many mines and building material factories now choose this clean heat source. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We started in 2014. We are a high-tech company with many patents.
Fully Automatic and Safe to Use
This natural gas hot air furnace comes with a full automatic control system. You just set the temperature you want. The system then adjusts the gas flow and air flow by itself. No one needs to watch it all day. If the temperature goes too high or too low, the system sounds an alarm and shuts down. This keeps your plant safe. You can use pipeline natural gas or LNG. The furnace works well for quartz sand, calcium carbonate, feldspar, bentonite, kaolin, and many other mineral powders. It is clean, efficient, and easy to maintain.
Technical Data for Natural Gas Hot Air Furnace
Natural gas heat value is 8300-8600 kcal/m³. Full data is available from our engineer.
|
Model |
Rated Heat Supply (10,000 kcal/h) |
Gas Use (m³/h) |
Hot Air Temp (°C) |
Fan Power (kW) |
|
HKTRL-200 |
200 |
233-241 |
350-750 |
5.5 |
|
HKTRL-300 |
300 |
349-361 |
350-750 |
7.5 |
|
HKTRL-400 |
400 |
465-482 |
350-750 |
11 |
|
HKTRL-500 |
500 |
581-602 |
350-750 |
15 |
|
HKTRL-600 |
600 |
698-723 |
350-750 |
22 |
Real Case from Guangdong
A ceramsite plant in Guangdong had very strict environmental rules. They could not use coal. They bought our HKTRL-400 natural gas hot air furnace. After they started it, there was no black smoke. The environmental test passed on the first try. The temperature control was very precise. The ceramsite quality became even better than before. The owner said the extra fuel cost was worth it.
FAQ and Control System
Q: How precise is the temperature control?
Very precise. The automatic system adjusts gas and air in real time.
Q: Do I need a dedicated person to operate it?
No. The automatic system does the work. You only need to check it sometimes.
Q: What happens if something goes wrong?
The system alarms and shuts down automatically. This keeps everyone safe.
