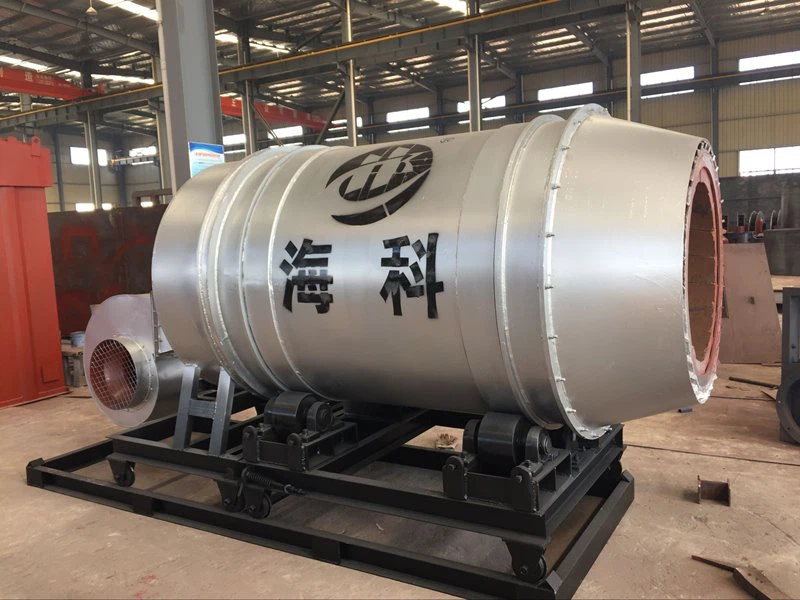

Pulverized Coal Furnace
High Temperature with Full Combustion
Our pulverized coal furnace uses fine coal powder as fuel. The coal powder is sprayed into the furnace through a burner and burns in suspension. It produces high-temperature flue gas or hot air. This provides heat for mineral powder drying, rotary kilns, and dryers. Compared to lump coal stoves, the pulverized coal furnace burns more completely, heats up faster, has stable temperature, and higher heat efficiency. It is good for medium to large drying lines. Jiangsu Haike Environmental Tech Co., LTD has 28 workers and a 30-acre factory. We are a high-tech company with many patents since 2014.
Fuel and Supporting System
The fuel is bituminous or anthracite coal made into fine powder. The fineness is usually 70% passing 200 mesh. This pulverized coal furnace is used for drying non-metallic mineral powder, sand and gravel, clay, kaolin, bentonite, and slag. The main features are full combustion, high heat efficiency, high furnace temperature, large output, and stable adjustable heat supply. You need a coal preparation system and high-efficiency dust collection. We can provide the coal grinding and conveying equipment too.
Technical Data for Pulverized Coal Furnace
Coal heat value is ≥5000 kcal/kg. Full data available from our engineer.
|
Model |
Rated Heat Supply (10,000 kcal/h) |
Coal Powder Use (kg/h) |
Hot Air Temp (°C) |
Fan Power (kW) |
|
RL-M200 |
200 |
400 |
350-750 |
5.5 |
|
RL-M300 |
300 |
600 |
350-750 |
7.5 |
|
RL-M400 |
400 |
800 |
350-750 |
11 |
|
RL-M500 |
500 |
1000 |
350-750 |
18.5 |
|
RL-M600 |
600 |
1200 |
350-750 |
22 |
Case from Shandong Drying Plant
A large mineral powder drying plant in Shandong used a lump coal stove. The temperature rose slowly. They burned a lot of coal each day. We replaced it with a RL-M400 pulverized coal furnace. Now they get high-temperature flue gas in 15 minutes after ignition. Coal use dropped by 30%. Output increased by 20%. The customer is very satisfied.
FAQ and Coal Preparation
Q: Do you provide the coal grinding system?
Yes. We can supply the coal mill and conveying equipment. You just provide raw coal.
Q: Is it fully automatic?
Yes. The whole system runs automatically. Easy to operate.
Q: What about dust?
We match it with high-efficiency dust collection.
