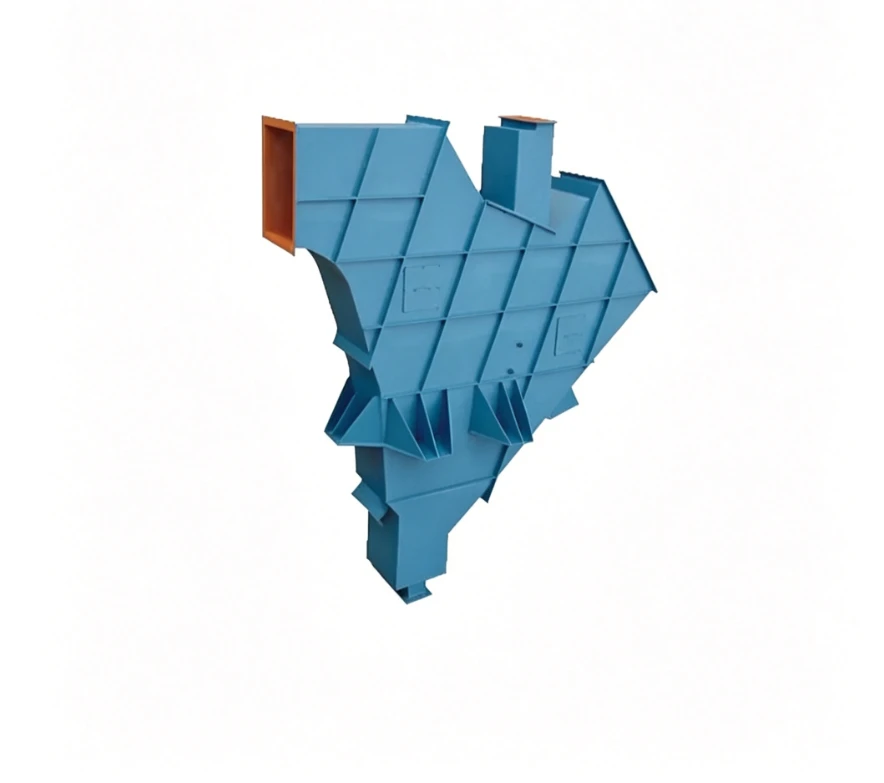

V-Series Air Classifier
Product Description
The V-Series Air Classifier is a pre-grading "miracle" tool for roller press grinding systems. It is designed to break up material cakes after pressing, returning coarse particles for re-grinding while sending fines to the mill. Because it has no internal moving parts, it eliminates power loss and mechanical maintenance issues, making it the heart of modern efficient grinding lines.
Experience shows that adding a V-Series classifier can increase system output by 30% while reducing power consumption by 20%. Our internal guide plates are made of high-wear-resistant materials to ensure a 10-year lifespan in cement and slag processing.
Technical Specifications
|
Processing Capacity |
90 – 540 t/h |
|
Supporting Air Volume |
30,000 – 180,000 m³/h |
|
Material |
Heavy carbon steel with wear-resistant liners |
|
Design |
Static V-shaped internal structure |
|
Energy Consumption |
Zero internal mechanical power consumption |
Applications
Cement roller press grading, slag powder systems, and aggregate grading adjustment.
Customization
We offer free pre-sales support to recommend the optimal model (from V500 to V2500) based on your target hourly output and particle size distribution.
Quality Assurance
Inspection: 100% full inspection under ISO 9001 before packaging.
Logistics: Pre-planned logistics to ensure on-time delivery.
FAQ
Q: Does it have a drying function?
A: Yes. When connected to a hot air system, it serves as an efficient drying device for high-moisture raw materials.
Q: Is delivery faster for repeat orders?
A: Yes, our production of standard modules is highly mature.
